Lut 2.0 SPF/
Single Probe Fixed

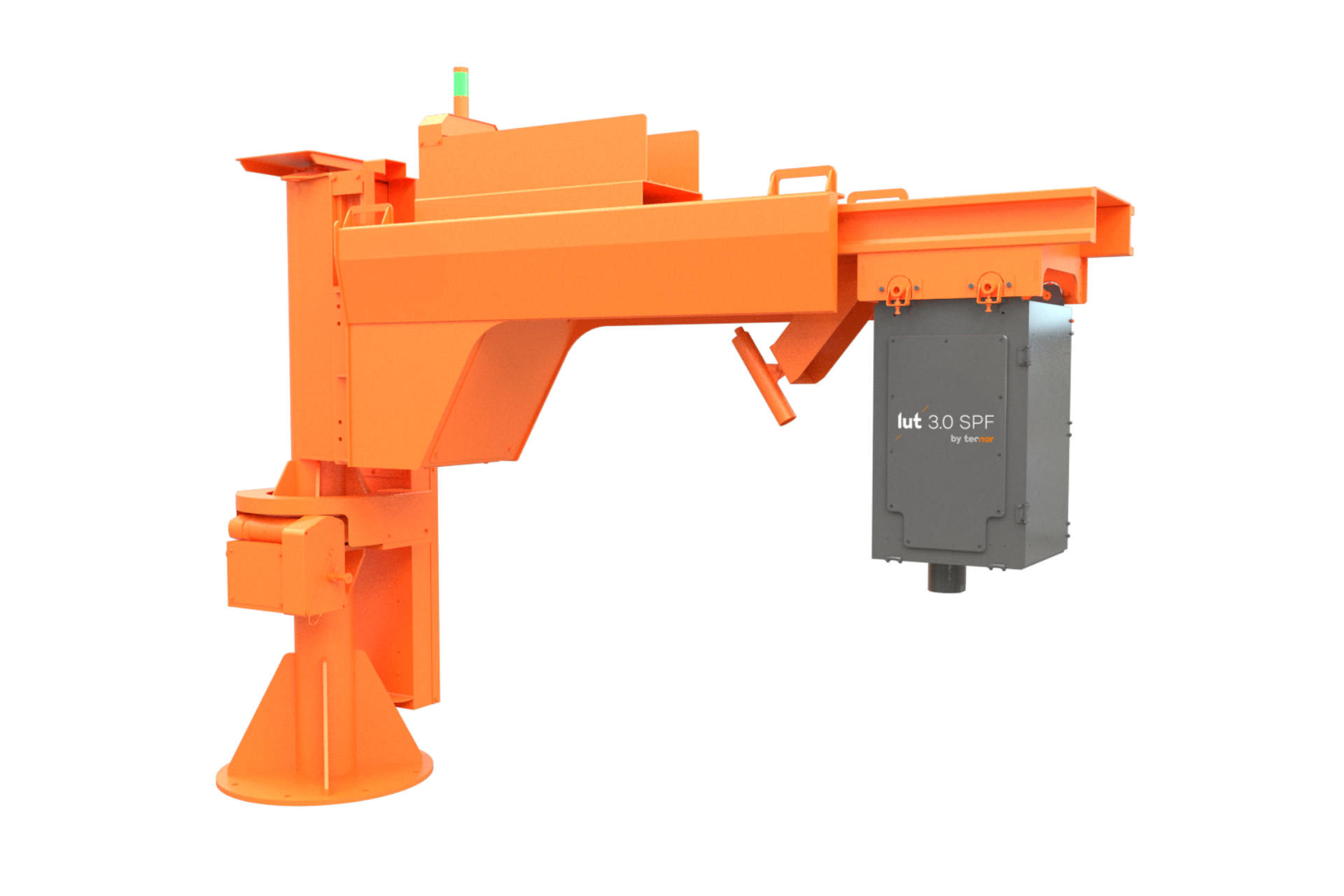

Lut 2.0 SPF for cross rolling processes

The Lut 2.0 Single Probe Fixed configuration is ideal for rotary processes such as:

  • Assel mill
  • Reeler mill
  • Rotary sizer
  • Piercing mill

With the tube in rotation, the Lut 2.0 provides full circumferential coverage and highly accurate eccentricity measurements, even with a mandrel.

Single Probe Fixed

  • Modular online support structure is easily adapted to any production line
  • Fully motorized support structure
  • Small footprint: as little as 500 mm x 500 mm of floor space is required
  • No tube guiding required. Typically, no modifications to the line are necessary.
  • Built to sustain direct tube impact
  • Integrated turnkey equipment with all support systems included.

Key hardware advantages

  • Marathon™ laser, with a diode lifetime of 6 billion shots, does not require any regular maintenance
  • Durabeam™ fully sealed optical assembly for years of maintenance-free operations
  • PDL™ provides a wide working margin (>350mm) so the Lut 2.0 can operate at a safe distance from the tube
  • TWM™ high-sensitivity detector is naturally immune to ambient vibrations.
Learn more

Intuitive user interfaces

The Lut 2.0 thickness gauge continuously monitors tube production to attain better mill yield. Through the user interface, operators can access all critical information in real time and any archived data can be recalled and visualized at any time. The customizable user interface allows the user to visualize:

  • Tube profiles
  • Average values
  • Production trends

The Lut 2.0 advanced analytics module:

  • Detects and quantifies eccentricity orders individually
  • Measures the position of heavy/light ends
Learn more

Maintenance plan

Predictability is key to managing the operational costs of a seamless line. Our service plan gives plant managers the peace of mind of knowing that they’ll never incur unexpected repair costs.

  • Flat-rate, all-inclusive, 5-year plan
  • Insures > 98% industrial availability
Our commitment

Available options

Length meter

The optional length meter is a single-axis laser velocimeter based on the interference of two beams originating from the same frequency-stabilized laser source. It is used to determine where each wall thickness and temperature measurement is made. It can be mounted directly on the support frame of the Lut 2.0 or near the Lut measurement position. Note that the length-meter is not compatible with rotating tubes.

Outer diameter profilometer

As an option, the Lut 2.0 can be equipped with an outer diameter measurement system. The information captured by the profilometer is integrated into the Lut 2.0 database. We offer a number of options from several OD gauge suppliers.

Technical specifications - Lut 2.0 SPF

Imperial
Metric

Wall thickness measurement

Range

3 to 50 mm

0.1 to 2.0 in.

Accuracy

± 0.1 mm for nominal thickness under 20 mm

± 0.004 in. for nominal thickness under 0.8 in.

± 0.2 mm for nominal thickness from 20 to 25 mm

± 0.008 in. for nominal thickness from 0.8 to 1 in.

± 0.4 mm for nominal thickness over 25 mm

± 0.016 in. for nominal thickness over 1 in.

Resolution

Better than 0.01 mm

Better than 0.0004 in.

Steel grades

Any steel alloys, including stainless

Any steel alloys, including stainless

Tube outer diameter

Range

> 25 mm

> 1 in.

Temperature measurement

Range

600°C to 1200°C

1100°F to 2200°F

Accuracy

± 50°C

± 120°F

Data acquisition

Rate

Up to 100 data samples/sec.

Up to 100 data samples/sec.

Ready to increase plant yield by 5%

Contact us to learn how to leverage the data from the Lut 2.0 and get a return on your investment in less than two years.
